ielecssol Semi Integrated Solar Street Light 20W LED with Solar Panel & Lithium Battery, Model – Newlite with mounting structure
₹12,600.00
Product Code – FNSSL00073
Warranty: 18 Months
Use Coupon PREPAID get Upto 10% or Upto Rs.1000 Off on all prepaid orders.
Product Summary:
What is a Semi-Integrated Solar Street Light?

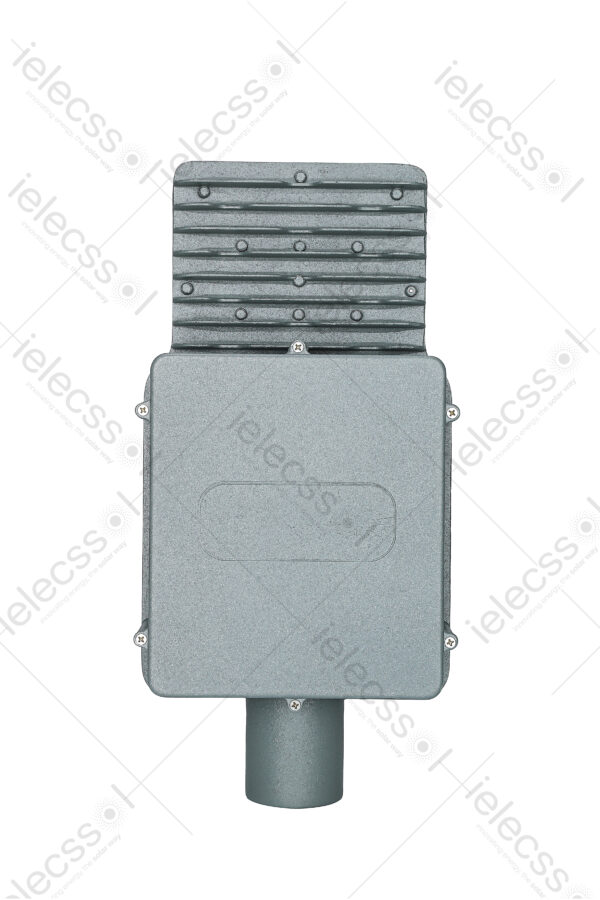

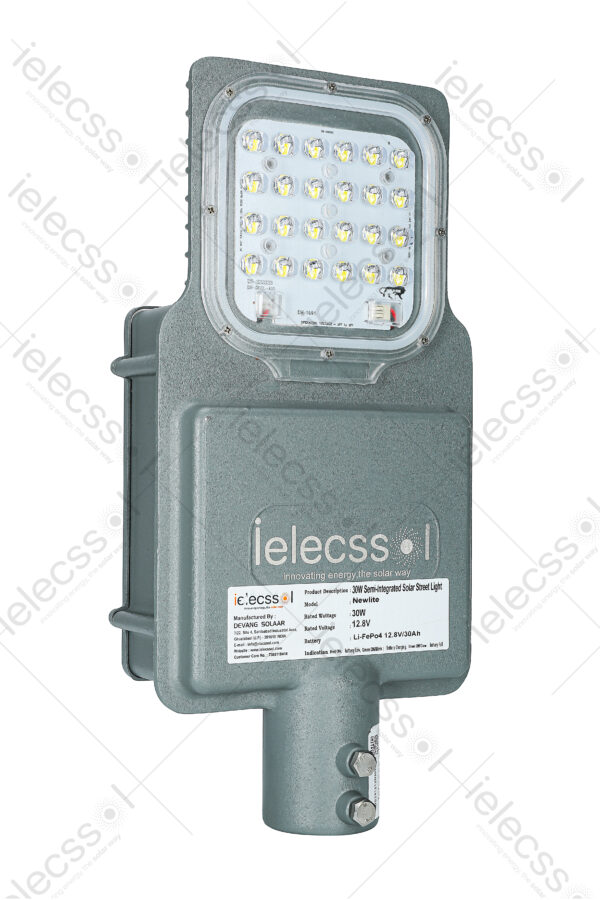

ielecssol Semi-Integrated Solar Street light is a solar-powered compact LED lighting solution integrating high power LED & Battery in one aluminium Die cast fixture. Solar Panel is mounted on the top of the pole. It is very easy to install & at any location where there is no power supply available and Low on maintenance.
It provides backup for 1 to 2 nights as per the specification of the Luminaire.
This Model can be mounted easily on any existing tubular pole, octagonal pole or wall-mounted. The LED light of the solar panel is mounted on the luminary’s arm and it can withstand high wind pressure. The direction of the solar panel can be changed as per the site requirement.
Product Specifications
Specifications:
- Light Wattage – 20W LED
- Solar Panel – 75Watt Polycrystalline
- Battery -12.8V, 30Ah Lithium Ferro Phosphate Battery
- Mounting Bracket – Luminary arm & mounting structure which can be mounted on the existing pole
- Cables – IP65 Connector from LED Light to Solar Panel
- Dusk to Dawn – Operation (Auto ON-OFF)
- Autonomy – 2 days backup
- Dimming – Light will glow at 100% brightness for the 1st 4 Hrs and after that it will dim to 33% brightness.
- Warranty – 18 Months
Indications:
- Battery Low indication – Red LED blink
- Solar panel charging to Battery indicator – Green LED blink
- Full Charge indication – Green LED continuous Glow
Measurements & Weight:
- Dimension – LED Light L x B x H – 425MM x 210MM x 100MM
- Dimension – Solar Panel L x B x H – 800MM x 670MM x 45MM
- Dimension – Luminary arm & mounting Structure L x B x H – 680MM x 245MM x 215MM
- Total Weight : 19.5KG
