Product Specifications

Specifications:

• Solar Panel – 5Watt Polycrystalline with 3 Mtr wire


  ---

• LED Bulb -1W LED x 3 Pc with each set


  ---

• Battery -7.4 V, 2.6 Ah Lithium-ion Battery


  ---

• Cable – 5Mtr cable with each LED bulb with On-Off switch


  ---

• USB Mobile charging cord


  ---

• AC Adapter 9V – Optional Charging during the cloudy season


  ---

• Warranty – 12 Months


  ---

Indication:

• Battery low indication – Red LED Blink


  ---

• Solar panel charging to battery indicator – Green LED blink


  ---

• Full charge indication – Green LED continuous Glow


  ---

Protection:

• Short Circuit Protection


  ---

• Reverse Polarity Protection


  ---

• Over Charging


  ---

• Deep Discharging


  ---

Shipping Details:

• Module Dimension L x W x H – 330MM x 228MM x 85MM


  ---

• Weight – 1.9KG


  ---

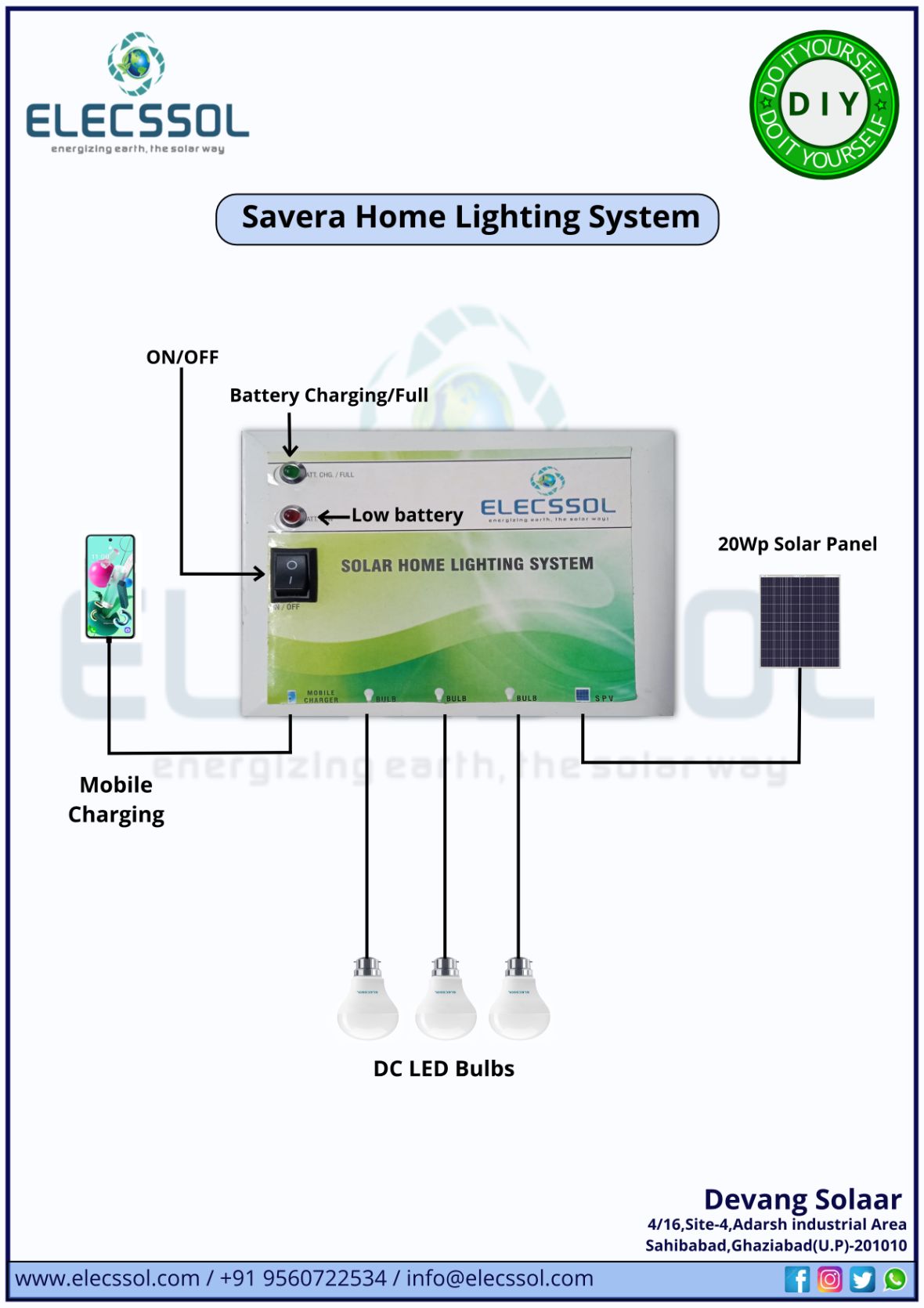

Download the connection diagram
