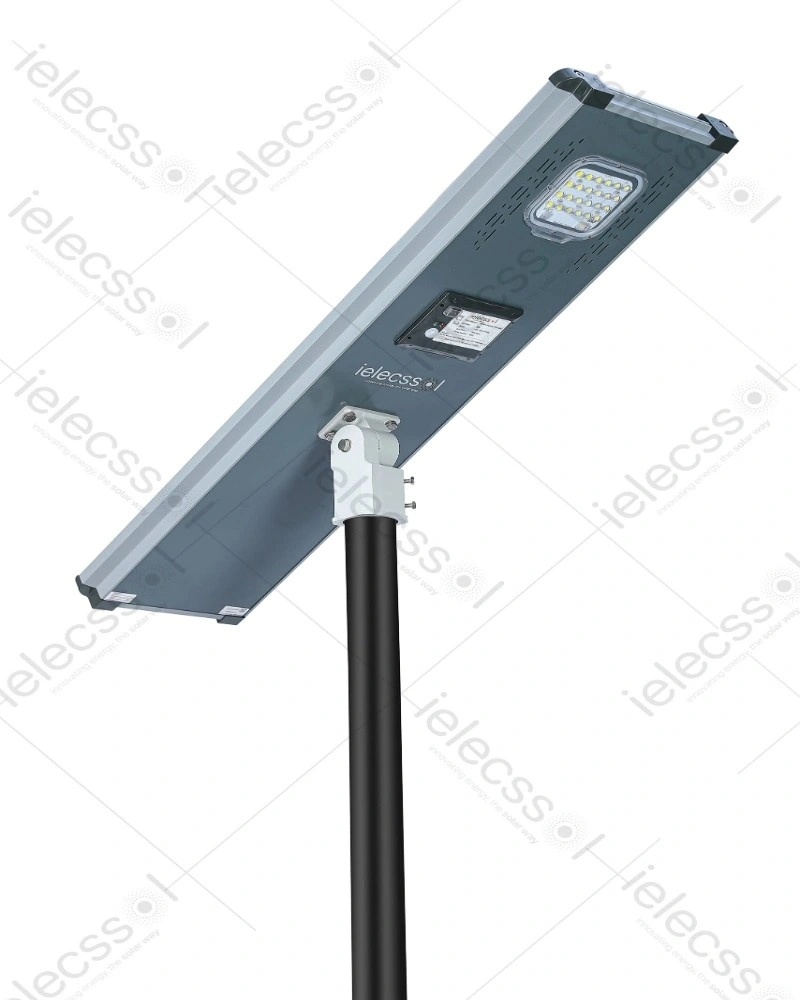

ielecssol 15W LED All in One Solar Street Light +CCTV Camera
Product Code – FAIO00118
Warranty: 18 Months
All in One Solar Street Light is a new age and compact lighting solution integrating Solar panels, LED light, a Lithium-based battery, and a PIR motion sensor. This light incorporates proprietary ielecssol LED driver technology which combines world-class battery charging technology with high efficient microprocessor-based electronics. All in One Solar Street Light uses a PIR motion sensor to adjust the LED light brightness. If no movement is detected for more than 1 minute, the brightness is reduced to one-third. This intelligent brightness control coupled with maintenance-free Lithium-based battery technology provides longer backup time and better battery life. Due to its compact size, this light can be easily mounted on a pole top by anyone. The light has automatic dusk to dawn operation and needs negligible maintenance once installed. The All in One Solar Street Light uses high-quality material and is designed as per Indian environments.
- LED Wattage – 15W LED
- Solar Panel – 75 Watt Mono Perc
- Battery – 12.8V, 36 Ah Lithium Ferro phosphate Battery
- Motion Sensor – Provided
- PIR Motion Sensor -12M Range
- Autonomy – 15-18Hrs. backup*
- Dusk to Dawn Operation (light will be Auto ON-OFF)
- Adjustable mounting bracket to change the direction of All in one light
- CCTV Camera operated through Mobile App
- Dimming Operation – Light will glow in the fullbright mode for the rst 4 Hrs, After 4 Hrs. Light will Dim to 33% power and motion sensor for the detection of motion. If any motion is detected 12M area around the, then it will glow in full mode for 2 min, After that, it will again come to 33% power.
- Warranty – 18 Months
- Battery Low indication – Red LED blink
- Solar panel charging to Battery indicator – Green LED blink
- Full Charge indication – Green LED continuous Glow
How Does a Solar Powered Camera Operate?
This All-in-one system stores energy from solar panels into its internal Lithium battery with a maximum power point tracking algorithm and stored energy in the battery which is used for 24-hours CCTV surveillance and powering LED lamps at night.
Full HD 1080p camera helps to monitor high-resolution live streaming and its wide viewing angle makes it perfect for watching larger area coverage. The high-quality Video and Audio recording feature of the camera enables users to watch previous activities.
The camera data is transmitted through the wifi-router internet connection. It can be accessed through a local Wi-Fi network.
- WiFi connected CCTV camera
- Full HD 1080p camera with wide viewing angle
- Audio and Video recording supported with a memory card
- Automatic Dusk and Dawn detection
- Cable-free installation
- Optional PIR sensor for dimming at no motion
- Advanced MPPT charge controller with ultrafast MPPT algorithm
- Super long life span LEDs
- Unique body design with adjustable mounting option
- Dust-proof, Rust-proof and Rain-proof
- Two-stage battery charge algorithm for greater battery life
- Lithium Ferro-phosphate battery powered
- Approved by MNRE Lab
- IP65 Approved
- Recommended Pole length – 5 to 6 Mtr.
- Recommended Pole Dia – It should be Below 76MM OD
- Dimension – (1280 x 340 x 60)mm
- Weight – 20kg
